Karbidový pilový děrovač Carbide Tipped
Pilové děrovače » Karbidový pilový děrovač Carbide Tipped

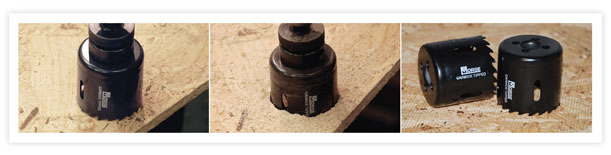

Carbide Tipped je karbidový korunkový vrták, který nabízí nejvyší možnou odolnost proti opotřebení a vysoce produktivní řezání. Řezná hloubka je 38mm. Samostatná upínací stopka vyžadována.
Výhody:
- speciální geometrie zubu zaručuje vysoce produktivní řezání
- speciální rozvod zubů
- zubení - 3 zuby na palec a hlubší zubová mezera pro dokonalý odvod materiálu a rachlý řez
- řez do hloubky až 38mm
Použití:
zvukoizolační desky, obklady, dřevotříska, kabely, omítka, plasty, dřevo bez hřebíků
| Průměr (mm) | Průměr (palce) | Velikost závitu | Typ | Obj. kód |
|---|---|---|---|---|
| 14mm | 9/16" | 1/2-20 | AT09 | 160049 |
| 16mm | 5/8" | 1/2-20 | AT105 | 160100 |
| 17mm | 11/16" | 1/2-20 | AT11 | 160117 |
| 19mm | 3/4" | 1/2-20 | AT12 | 160124 |
| 20mm | 1/2-20 | AT125 | 160063 | |
| 21mm | 13/16" | 1/2-20 | AT13 | 160131 |
| 22mm | 7/8" | 1/2-20 | AT14 | 160148 |
| 24mm | 15/16" | 1/2-20 | AT15 | 160155 |
| 25mm | 1" | 1/2-20 | AT16 | 160162 |
| 27mm | 1-1/16" | 1/2-20 | AT17 | 160179 |
| 29mm | 1-1/8" | 1/2-20 | AT18 | 160186 |
| 30mm | 1-3/16" | 1/2-20 | AT19 | 160193 |
| 32mm | 1-1/4" | 5/8-18 | AT20 | 160209 |
| 33mm | 1-5/16" | 5/8-18 | AT21 | 160216 |
| 35mm | 1-3/8" | 5/8-18 | AT22 | 160223 |
| 37mm | 1-7/16" | 5/8-18 | AT23 | 160230 |
| 38mm | 1-1/2" | 5/8-18 | AT24 | 160247 |
| 40mm | 1-9/16" | 5/8-18 | AT25 | 160254 |
| 41mm | 1-5/8" | 5/8-18 | AT26 | 160261 |
| 43mm | 1-11/16" | 5/8-18 | AT27 | 160278 |
| 44mm | 1-3/4" | 5/8-18 | AT28 | 160285 |
| 46mm | 1-13/16" | 5/8-18 | AT29 | 160292 |
| 48mm | 1-7/8" | 5/8-18 | AT30 | 160308 |
| 51mm | 2" | 5/8-18 | AT32 | 160322 |
| 52mm | 2-1/16" | 5/8-18 | AT33 | 160339 |
| 54mm | 2-1/8" | 5/8-18 | AT34 | 160346 |
| 57mm | 2-1/4" | 5/8-18 | AT36 | 160360 |
| 59mm | 2-5/16" | 5/8-18 | AT37 | 160377 |
| 60mm | 2-3/8" | 5/8-18 | AT38 | 160384 |
| 64mm | 2-1/2" | 5/8-18 | AT40 | 160407 |
| 70mm | 2-3/4" | 5/8-18 | AT41 | 160414 |
| 67mm | 2-5/8" | 5/8-18 | AT42 | 160421 |
| 68mm | 2-11/16" | 5/8-18 | AT43 | 160438 |
| 70mm | 2-3/4" | 5/8-18 | AT44 | 160445 |
| 73mm | 2-7/8" | 5/8-18 | AT46 | 160469 |
| 76mm | 3" | 5/8-18 | AT48 | 160483 |
| 79mm | 3-1/8" | 5/8-18 | AT50 | 160506 |
| 83mm | 3-1/4" | 5/8-18 | AT52 | 160520 |
| 86mm | 3-3/8" | 5/8-18 | AT54 | 160544 |
| 89mm | 3-1/2" | 5/8-18 | AT56 | 160568 |
| 92mm | 3-5/8" | 5/8-18 | AT58 | 160582 |
| 95mm | 3-3/4" | 5/8-18 | AT60 | 160605 |
| 98mm | 3-7/8" | 5/8-18 | AT62 | 160629 |
| 102mm | 4" | 5/8-18 | AT64 | 160643 |
| 105mm | 4-1/8" | 5/8-18 | AT66 | 160667 |
| 108mm | 4-1/4" | 5/8-18 | AT68 | 160681 |
| 111mm | 4-3/8" | 5/8-18 | AT70 | 160704 |
| 114mm | 4-1/2" | 5/8-18 | AT72 | 160728 |
| 121mm | 4-3/4" | 5/8-18 | AT76 | 160766 |
| 127mm | 5" | 5/8-18 | AT80 | 160803 |
| 133mm | 5-1/4" | 5/8-18 | AT84 | 160841 |
| 140mm | 5-1/2" | 5/8-18 | AT88 | 160889 |
| 146mm | 5-3/4" | 5/8-18 | AT92 | 160926 |
| 152mm | 6" | 5/8-18 | AT96 | 160964 |
